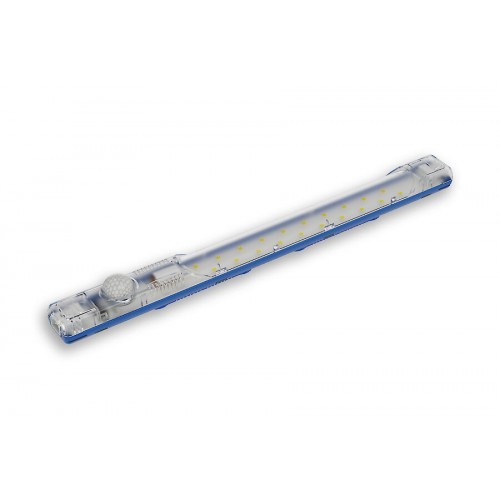

SL 4007 LED - built-in male Wieland connector and motion sensor (separate female Wieland connector required)
Product Feature
| Order Number | 400076 |
| Brand Name | STRIPLITE |
| Colour | Top cover frosted / body blue |
| Housing Material | PC plastic |
| IP protection class to EN 60 529 | IP 20 |
| Included | Built-in motion sensor, switch off time 5 min. mounting accessories |
| Note | class II Energy class F |
| Approvals | CE, cURus |
Technical Data
| Operating Temperature Range | -30°C - 70°C UL max temp: 60°C |
| Mounting | Magnets / Clips |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 357.4 x 32 x 35.5 mm |
| Weight | 140 gr. |
| Voltage / Frequency | 120-230 V ~ 50/60 Hz |
| Power consumption | 8 Watt |
| Lamp | LED, 6500K |
| Luminosity | 700 lm |
| Lifetime | 60.000 hrs. @ 20°C |
| Connection | Connector system |
Downloads
Datasheet
PDF
Instruction Manual PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration
SL 400076 LED - 700Lm - motion sensor (separate connector required)
- Brands Seifert
- Product Code: 400076
- Availability: 1-2 Weeks
-
£78.00
-
- 20 or more £53.60
