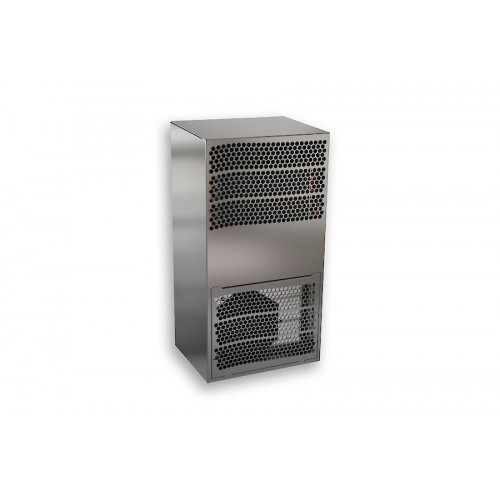

SoliTherm Outdoor air conditioning unit OC-5704-230V. All our UL type 4X units come with a condensate evaporation and a cabinet heater.

Product Feature

Order Number	57040182
Brand Name	Compact Outdoor
Housing Material	Stainless steel AISI 304 (V2A)
IP protection class to EN 60 529	IP 56 / Type 12, 3, 3R, 4, 4X
Included	With enclosure heater and aluminium filter
Approvals	CE, cURus, cULus
UL File Number	cURus (SA32278), cULus (E498756)

Technical Data

Cooling capacity L35L35 (EN14511-3)	290 W @ 50 Hz 300 W @ 60 Hz
Cooling capacity L35L50 (EN14511-3)	250 W @ 50 Hz 250 W @ 60 Hz
Enclosure heater	150 W
Compressor type	Rotary piston compressor
Refrigerant / GWP	R 513A / 630
Refrigerant charge	110 g / 3.88 oz.
High / low Pressure	2.9 / 0.6 MPa 425 / 88 psig
Air flow volume (system / unimpeded)	Ambient air circuit: 85 / 300 m³/h Cabinet air circuit: 85 / 136 m³/h
Operating Temperature Range	-40°C - 55°C
Mounting	Wall mounted
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	480 x 250 x 190 mm
Weight	15.2 kg
Cut out dimensions	204 x 250 mm
Voltage / Frequency	230 V ~ 50/60 Hz
UL Voltage / Frequency	230 V ~ 60 Hz
Current L35L35	1.4 A @ 50 Hz 1.3 A @ 60 Hz
Starting current	5 A
Max. current	1.5 A
Nominal power L35L35	300 W @ 50 Hz 295 W @ 60 Hz
Max. power	320 W @ 50 Hz 315 W @ 60 Hz
Fuse	2.5 A (T)
Short-circuit current rating	5 kA
Connection	4 pole terminal block for power 5 pole terminal block for signals 3 pole terminal block for RS 485
