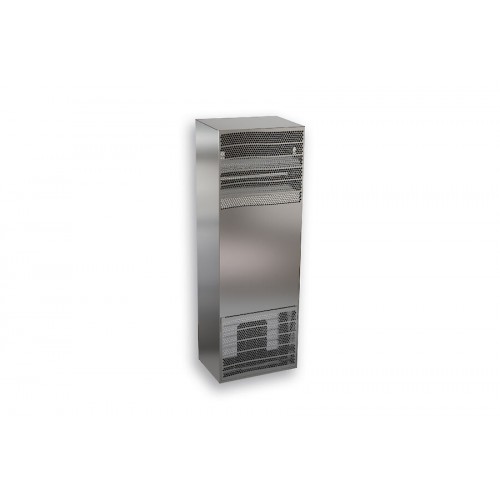

SoliTherm Outdoor air conditioning unit OC-5720-230V. All our UL type 4X units come with a condensate evaporation and a cabinet heater.

Product Feature

Order Number	57200182
Brand Name	Compact Outdoor
Housing Material	Stainless steel AISI 304 (V2A)
IP protection class to EN 60 529	IP 56 / Type 12, 3, 3R, 4, 4X
Included	With enclosure heater and aluminium filter
Approvals	CE, cURus, cULus
UL File Number	cURus (SA32278), cULus (E498756)

Technical Data

Cooling capacity L35L35 (EN14511-3)	2000 W @ 50 Hz 2000 W @ 60 Hz
Cooling capacity L35L50 (EN14511-3)	1600 W @ 50 Hz 1600 W @ 60 Hz
Enclosure heater	1000 W
Compressor type	Rotary piston compressor
Refrigerant / GWP	R513A / 630
Refrigerant charge	522 g / 18.4 oz
High / low Pressure	29 / 6 bar 425 / 88 psig
Air flow volume (system / unimpeded)	Ambient air circuit: 655 / 1200 m³/h Cabinet air circuit: 400 / 850 m³/h
Operating Temperature Range	-40°C - 55°C
Mounting	Wall mounted
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	1,150 x 395 x 270 mm
Weight	49 kg
Voltage / Frequency	230 V ~ 50/60 Hz
UL Voltage / Frequency	230 V ~ 60 Hz
Current L35L35	5.4 A @ 50 Hz 6.8 A @ 60 Hz
Starting current	16 A
Max. current	8.6 A
Nominal power L35L35	1193 W @ 50 Hz 1491 W @ 60 Hz
Max. power	1468 W @ 50 Hz 1810 W @ 60 Hz
Fuse	13 A (T)
Short-circuit current rating	5 kA
Connection	4-pole terminal block for power 5-pole terminal block for signals 3-pole terminal block for RS 485
