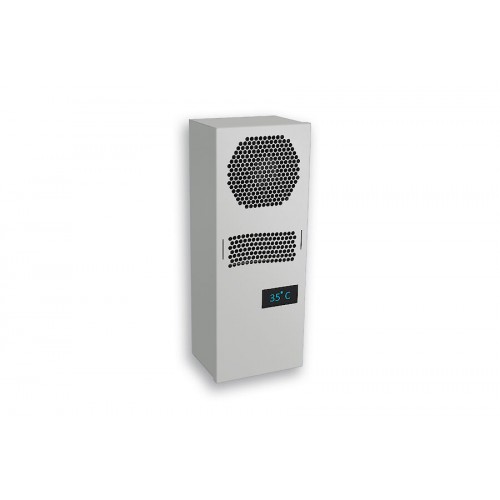

Air / air heat exchanger LT 58007-230V. Suitable for Indoor applications, inbuilt electronic controller with colour display and protection class IP 54.
Product Feature
| Order Number | 580070001 |
| Brand Name | SLIMLINE HEX |
| Colour | RAL 7035 |
| Housing Material | Mild steel, powder coated |
| IP protection class to EN 60 529 | IP 54 / NEMA 12 |
| Approvals | CE, cURus |
| UL File Number | SA9672 |
Technical Data
| Heat exchanger performance | 7 W/K |
| Air flow volume (system / unimpeded) | Ambient air circuit: 76 / 300 m³/h Cabinet air circuit: 87 / 300 m³/h |
| Operating Temperature Range | -5°C - 55°C |
| Mounting | Wall mounted |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 508 x 196.5 x 152 mm |
| Weight | 7.5 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| UL Voltage / Frequency | 230 V ~ 60 Hz |
| Starting current | 1.3 A |
| Max. current | 0.6 A |
| Max. power | 65 W |
| Fuse | 1 A (T) |
| Connection | 8 - pin Connector |
Downloads
Instruction Manual
PDF
CAD files
STEP File (Right click, save as)
Mounting Template DXF Internal (Right click, save as)
Certifications PDF EC Declaration
Air / Air heat exchanger LT 58007-230V
- Brands Seifert
- Product Code: 580070001
- Availability: 6 Weeks +
-
£0.00
