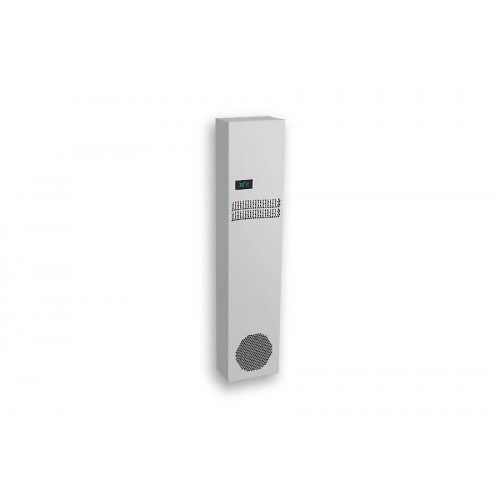

Air / air heat exchanger LT 58043-230VReliability and user friendliness are the best ways to describe the electronic controller being used in our new LT 58XXX air-air heat exchanger series.

Product Feature

Brand Name
Solitherm
Order Number
580430001
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
IP 54
Approvals
CE, cURus, RoHS
UL File Nummer
SA9672
Optional
With stainless steel part no. 58043002
Taric Code
84195000

Technical Data

Heat exchanger performance
43 W/K
Temperature range
-5°C - 55°C
Air volume flow (system / unimpeded)
Ambient air circuit: 310 / 850 m³/h
Cabinet air circuit: 310 / 850 m³/h
Mounting
External
Dimension HxWxD
1194 x 254 x 151.3 mm
Weight
16.7 kg
Voltage / Frequency
230 V ~ 50/60 Hz (120v optional)
Starting current
2 A
Max. current
0.9 A
Max. power
195 W
Fuse
1.6 A (T)
Connection
8 pin connector


Downloads

Datasheet                        230v    120v

Instruction Manual           PDF

CAD files                        STEP File

Mounting Template      DXF       Internal

Certifications                    PDF EC Declaration
