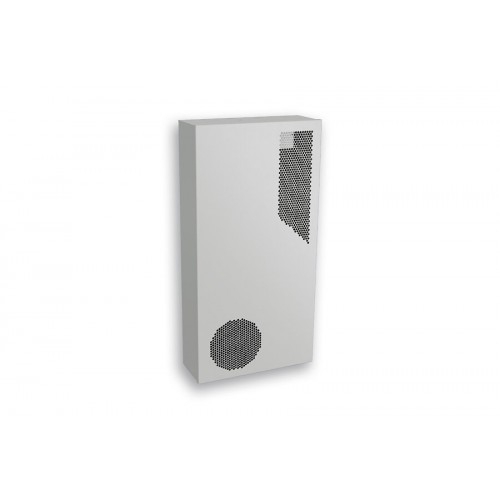

Air / air heat exchanger LT 58065-230V. Reliability and user friendliness are the best ways to describe the electronic controller being used in our new LT 58XXX air-air heat exchanger series.
Product Feature
| Order Number | 580650001 |
| Brand Name | SLIMLINE HEX |
| Colour | RAL 7035 |
| Housing Material | Mild steel, powder coated |
| IP protection class to EN 60 529 | IP 56 |
| Approvals | CE |
Technical Data
| Heat exchanger performance | 65 W/K |
| Air flow volume (system / unimpeded) | Ambient air circuit: 470 / 550 m³/h Cabinet air circuit: 480 / 550 m³/h |
| Operating Temperature Range | -25°C - 65°C |
| Mounting | Wall mounted |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 914.4 x 460 x 173 mm |
| Weight | 25 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| Rated current | 0.6 A / 0.8 A |
| Starting current | 5.4 A / 5.6 A |
| Max. power | 205 / 270 W |
| Fuse | 2.5 A (T) |
| Connection | 4 pole terminal block for electrical connection 5 pole terminal block for signals |
Downloads
Instruction Manual
PDF
Mounting Template DXF Internal (Right click, save as)
Certifications PDF EC Declaration
Air / Air heat exchanger LT 58065-230V
- Brands Seifert
- Product Code: 580650001
- Availability: 4-5 Weeks
-
£0.00
