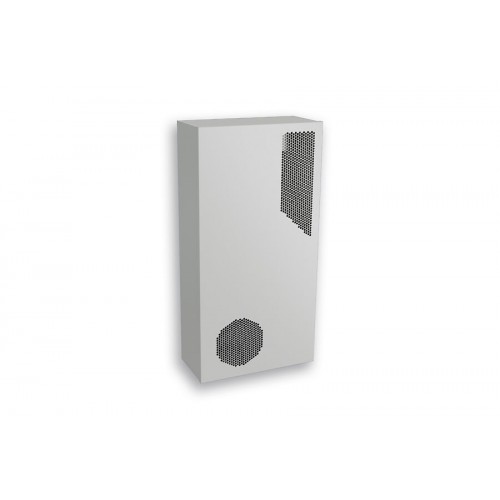

  • Air / Air heat exchanger LT 58100-230V

Air / air heat exchanger LT 58100-230V. Reliability and user friendliness are the best ways to describe the electronic controller being used in our new LT 58XXX air-air heat exchanger series.

Product Feature

Brand Name
Solitherm
Order Number
581000001
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
IP 56
Approvals
CE, RoHS
Optional
With stainless steel part no. 58100002
Taric Code
84158300

Technical Data

Heat exchanger performance
100 W/K
Temperature range
-40°C - +65°C
Air volume flow (system / unimpeded)
Ambient air circuit: - / 525 m³/h
Cabinet air circuit: - / 500 m³/h
Mounting
External
Dimension HxWxD
914.4 x 460 x 218 mm
Weight
25.5 kg
Voltage / Frequency
230 V ~ 50/60 Hz (120v optional)
Rated current
1.25 A
Starting current
6 A
Max. current
2 A
Power consumption
285 W
Max. power
460 W
Fuse
4 A (T)
Connection
4 pole terminal block for electrical connection
5 pole terminal block for signals


Downloads

Datasheet                        230v    120v

Instruction Manual           PDF

Mounting Template      DXF       Internal    (Right click, save as)

Certifications                    PDF EC Declaration
