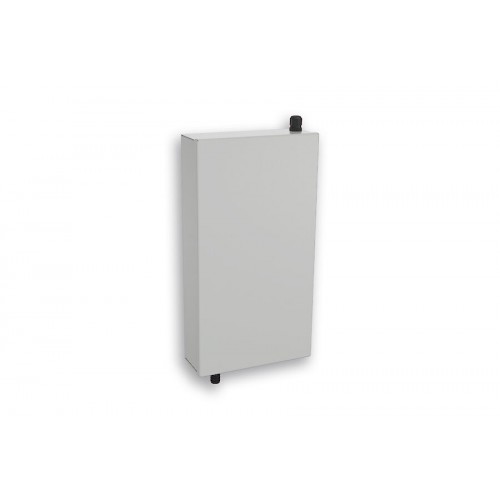

  • Air / Water Heat Exchanger RK 2114 A 400-230V

Air / Water Heat Exchanger RK 2114 A 400-230V. These industry proven heat exchangers are available from 650 W up to 10 kW (L35W10).

Product Feature

Brand Name
Solitherm
Order Number
2114003
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
IP 54
Approvals
CE, cURus, RoHS
Optional
Stainless steel, part no. 21140032
With internal mounting part. no. 2114002
Note: air outlet in floor panel
Taric Code
84158300

Technical Data

Cooling capacity L35W10 (200 l/h)
650 W
Cooling capacity L35W10 (500 l/h)
750 W
Refrigerant / GWP
Water, light oils or similar
Temperature range
+1°C - +72°C
Air volume flow (system / unimpeded)
180 / 460 m³/h @ 50 Hz
200 / 535 m³/h @ 60 Hz
Mounting
External
Dimension HxWxD
400 x 212 x 80 mm
Weight
4.5 kg
Voltage / Frequency
230 V ~ 50/60 Hz (120v / 400v / 24v / 48v optional)
Starting current
1 A
Max. current
0.4 A
Max. power
75 W
Pressure water circuit
10 bar
Water connection
Rp 1/4" - inside thread with 2 connectors
for pipe internal diameter of 10 mm
Fuse
4 A (T)
Connection
3 m cable ready for connection


Downloads

Datasheet                        230v    120v    400v    24v    48v

Instruction Manual           PDF

CAD files                        STEP File

Mounting Template      DXF       Internal

Certifications                    PDF EC Declaration
