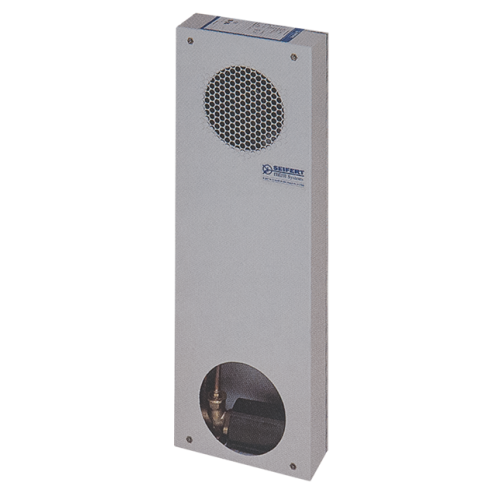

Air / Water Heat Exchanger RK 2114 A 632-230V. These industry proven heat exchangers are available from 650 W up to 10 kW (L35W10).
Product Feature
Brand NameSolitherm
Order Number2114014
ColorRAL 7035Housing MaterialMild steel, powder coatedIngress protectionIP 54NoteWith proportional water flow regulator
(control range +20°C - +50°C) part no. 2114004ApprovalsCE, cURus, RoHSOptionalWith stainless steel housing part.no.21140142Taric Code84158300Technical Data
Cooling capacity L35W10 (200 l/h)700 WCooling capacity L35W10 (500 l/h)800 WRefrigerant / GWPWater, light oils or similarTemperature range+1°C - +72°CAir volume flow (system / unimpeded)180 / 575 m³/h @ 50 Hz
200 / 625 m³/h @ 60 HzMountingInternal / ExternalDimension HxWxD632 x 212 x 80 mmWeight5.5 kgVoltage / Frequency230 V ~ 50/60 Hz (120v / 400v optional)Starting current1 AMax. current0.4 AMax. power80 WPressure water circuit10 barWater connectionRp 1/4" - inside thread with 2 connectors
for pipe internal diameter of 10 mmFuse4 A (T)Connection3 m cable ready for connection
Downloads
Datasheet 230v 120v 400v
Instruction Manual PDF
CAD files STEP File (Right click, save as)
Mounting Template DXF Internal (Right click, save as)
Certifications PDF EC Declaration
