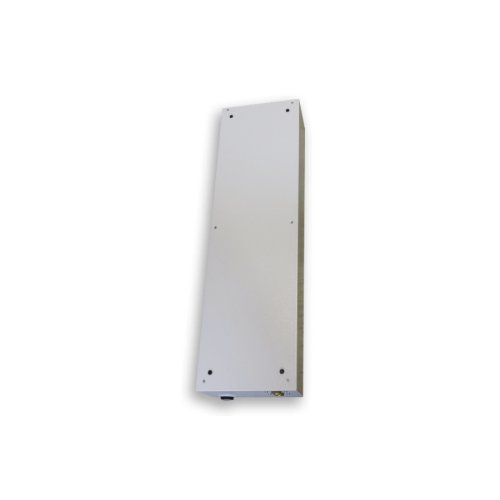

• Air / Water Heat Exchanger RK 2125 A-230V

Air / Water Heat Exchanger RK 2125 A-230V. These industry proven heat exchangers are available from 650 W up to 10 kW (L35W10).

Product Feature

Brand Name
Solitherm
Order Number
2125010
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
IP 54
Approvals
CE, RoHS
Optional
With solenoid valve article no. 2125000
Taric Code
84158300

Technical Data

Cooling capacity L35W10 (200 l/h)
2.5 kW
Cooling capacity L35W10 (500 l/h)
3.15 kW
Refrigerant / GWP
Water, light oils or similar
Temperature range
+1°C - +72°C
Air volume flow (system / unimpeded)
500 / 1175 m³/h @ 50 Hz
530 / 1300 m³/h @ 60 Hz
Mounting
Internal / External
Dimension HxWxD
936 x 262 x 146.5 mm
Weight
18 kg
Voltage / Frequency
230 V ~ 50/60 Hz (120v / 400v optional)
Starting current
1.2 A / 1.3 A
Max. current
0.7 A / 0.9 A
Max. power
200 W
Pressure water circuit
10 bar
Water connection
Rp 1/4" - inside thread with 2 connectors
for pipe internal diameter of 10mm
Fuse
5 A (T)
Connection
Connection terminals


Downloads

Datasheet                        230v    120v    400v

Instruction Manual           PDF

CAD files                        STEP File

Certifications                    PDF EC Declaration
