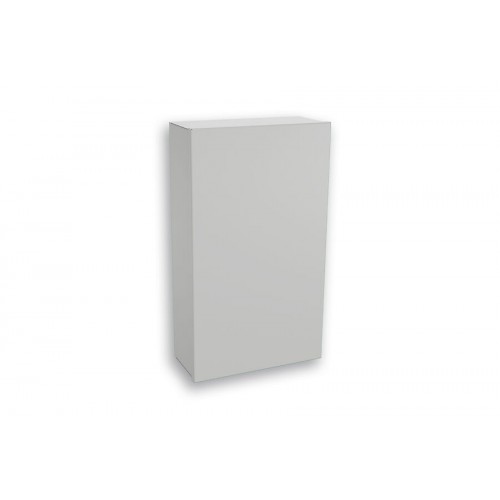

Air / Water Heat Exchanger RK 2130-230V. These industry proven heat exchangers are available from 650 W up to 10 kW (L35W10).
Product Feature
| Order Number | 2130010 |
| Brand Name | SLIMLINE HEX |
| Colour | RAL 7035 |
| Housing Material | Mild steel, powder coated |
| IP protection class to EN 60 529 | IP 55 |
| Approvals | CE, cURus |
Technical Data
| Cooling capacity L35W10 (200 l/h) | 3150 W |
| Cooling capacity L35W10 (500 l/h) | 4150 W |
| Coolant | Water, light oils or similar |
| Air flow volume (system / unimpeded) | 723 / 1340 m³/h |
| Operating Temperature Range | +1°C - +72°C |
| Mounting | Wall mounted / internal |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 950 x 400 x 180 mm |
| Weight | 17 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| Starting current | 1.3 / 1.4 A |
| Max. current | 0.7 / 1.1 A |
| Max. power | 160 / 240 W |
| Pressure water circuit | 10 bar |
| Water connection | Rp 1/4" - inside thread with 2 connectors for pipe internal diameter of 10 mm |
| Fuse | 2 A (T) |
| Connection | 3 - pole terminal for alarms 4 - pole terminal for power |
Downloads
Instruction Manual
PDF
CAD files
STEP File (Right click, save as)
Mounting Template DXF Internal (Right click, save as)
Certifications PDF EC Declaration
Air / Water Heat Exchanger RK 2130-230V
- Brands Seifert
- Product Code: 2130010
- Availability: 4-5 Weeks
-
£0.00
