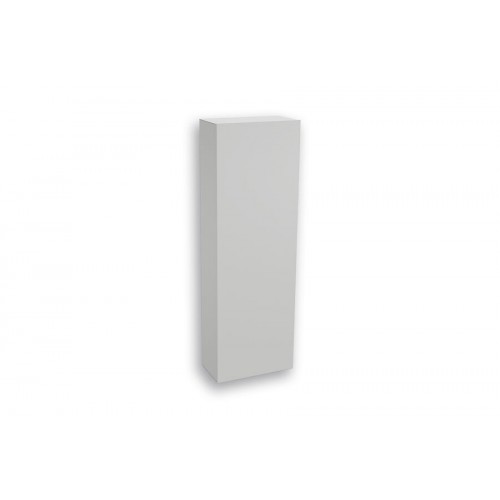

• Air / Water Heat Exchanger RK 2149 A-230V

Air / Water Heat Exchanger RK 2149 A-230V. These industry proven heat exchangers are available from 650 W up to 10 kW (L35W10).

Product Feature

Brand Name
Solitherm
Order Number
2149010
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
IP 54
Note
With water flow regulator with magnetic valve
(control range +20°C - +50°C) part no. 2149000
Approvals
CE, RoHS
Taric Code
84158300

Technical Data

Cooling capacity L35W10 (200 l/h)
4.8 kW
Cooling capacity L35W10 (500 l/h)
5.5 kW
Refrigerant / GWP
Water, light oils or similar
Temperature range
1°C - 72°C
Air volume flow (system / unimpeded)
910 / 1425 m³/h @ 50 Hz
980 / 1500 m³/h @ 60 Hz
Mounting
External
Dimension HxWxD
1,400 x 460 x 242 mm
Weight
33 kg
Voltage / Frequency
230 V ~ 50/60 Hz (120v / 400v optional)
Starting current
2.6 A
Max. current
1.3 A
Max. power
285 W
Pressure water circuit
10 bar
Water connection
1/2" - inside thread with 2 connectors
for pipe internal diameter of 13 mm
Fuse
4 A (T)
Connection
Connection terminals


Downloads

Datasheet                        230v    120v    400v

Instruction Manual           PDF

Mounting Template      DXF       Internal

Certifications                    PDF EC Declaration
