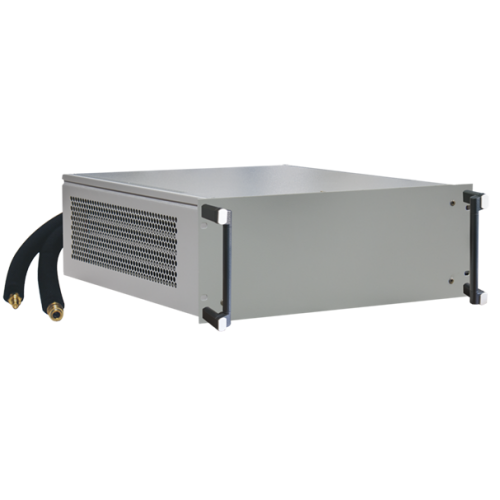

Air / Water Heat Exchanger RK 2194-230V. Seifert compressor cooling units for 19 "applications are available with cooling capacities (L35L35) from 550 W up to 1 kW.
Product Feature
| Order Number | 2194000 |
| Brand Name | 19 " RACK |
| Colour | RAL 7035 |
| Housing Material | Mild steel, powder coated |
| IP protection class to EN 60 529 | IP 54 |
| Note | With proportional water flow regulator (control range 20°C - 50°C) |
| Approvals | CE |
Technical Data
| Cooling capacity L35W10 (200 l/h) | 2 kW |
| Cooling capacity L35W10 (500 l/h) | 2.35 kW *) |
| Refrigerant / GWP | Water, light oils or similar |
| Air flow volume (system / unimpeded) | 360 / 390 m³/h @ 50 Hz 370 / 410 m³/h @ 60 Hz |
| Operating Temperature Range | 1°C - 72°C |
| Mounting | 19" rack |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 178 (4U) x 443 x 505 mm |
| Weight | 16.5 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| Starting current | 2.5 A |
| Max. current | 0.45 A |
| Max. power | 100 W |
| Pressure water circuit | 10 bar |
| Water connection | Rp 1/4" - inside thread with 2 connectors for pipe internal diameter of 10 mm |
| Fuse | 4 A (T) |
| Short-circuit current rating | 5 kA |
| Connection | Plug |
Downloads
Instruction Manual
PDF
Certifications PDF EC Declaration
Air / Water Heat Exchanger RK 2194-230V
- Brands Seifert
- Product Code: 2194000
- Availability: 6 Weeks +
-
£0.00
