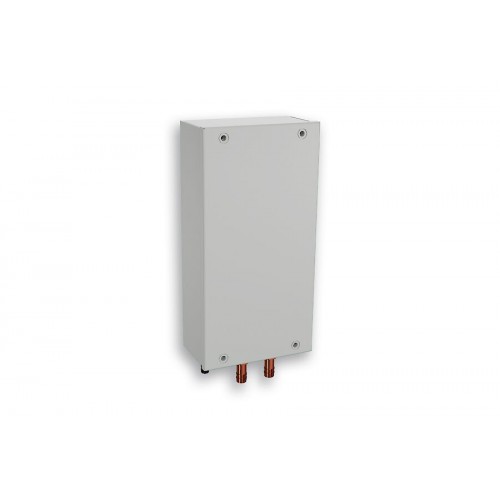

• Air / Water Heat Exchanger RK 2300-230V

Air / Water Heat Exchanger RK 2300-230VThese industry proven heat exchangers are available from 650 W up to 10 kW (L35W10).

Product Feature

Brand Name
Solitherm
Order Number
2300010
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
IP 54
Approvals
CE, RoHS
Taric Code
84195000

Technical Data

Cooling capacity L35W10 (200 l/h)
350 W
Refrigerant / GWP
Water, light oils or similar
Temperature range
1°C - 65°C
Air volume flow (system / unimpeded)
74 / 215 m³/h @ 50 Hz
85 / 240 m³/h @ 60 Hz
Mounting
External / Internal
Dimension HxWxD
303 x 153 x 84 mm
Weight
4.5 kg
Voltage / Frequency
230 V ~ 50/60 Hz (120v / 24v optional)
Starting current
0.35 A
Max. current
0.24 A
Max. power
37 W
Pressure water circuit
10 bar
Water connection
1/2" - inside thread with 2 connectors
for pipe internal diameter of 13 mm
Fuse
4 A (T)
Connection
Connection Terminals


Downloads

Datasheet                        230v    120v    24v

Instruction Manual           PDF

CAD files                        STEP File

Certifications                    PDF EC Declaration

Write a review

Please login or register to review

Air / Water Heat Exchanger RK 2300-230V

  • Brands Seifert
  • Product Code: 2300010
  • Availability: 4-5 Weeks
  • £0.00
