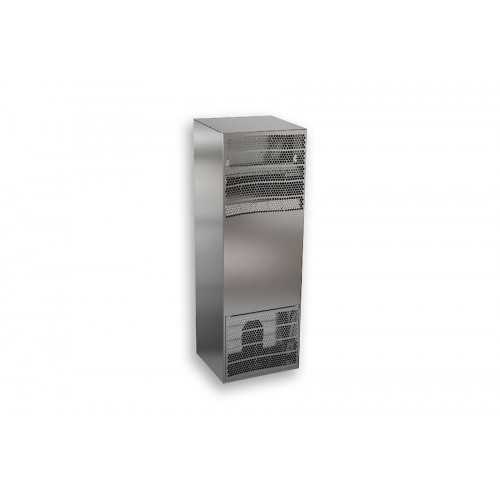

SoliTherm Outdoor air conditioning unit OC-5710-230V. All our UL type 4X units come with a condensate evaporation and a cabinet heater.

Product Feature

Order Number	57100182
Brand Name	Compact Outdoor
Housing Material	Stainless steel AISI 304 (V2A)
IP protection class to EN 60 529	IP 56 / Type 12, 3, 3R, 4, 4X
Included	With enclosure heater and aluminium filter
Approvals	CE, cURus, cULus
UL File Number	cURus (SA32278), cULus (E498756)

Technical Data

Cooling capacity L35L35 (EN14511-3)	1000 W @ 50 Hz 1080 W @ 60 Hz
Cooling capacity L35L50 (EN14511-3)	660 W @ 50 Hz 720 W @ 60 Hz
Enclosure heater	400 W
Compressor type	Rotary piston compressor
Refrigerant / GWP	R513A / 630
Refrigerant charge	291 g / 10.3 oz
High / low Pressure	30.1 / 6 bar 445 / 88 psig
Air flow volume (system / unimpeded)	Ambient air circuit: 320 / 850 m³/h Cabinet air circuit: 375 / 550 m³/h
Operating Temperature Range	-40°C - 55°C
Mounting	Wall mounted
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	900 x 304 x 270 mm
Weight	38 kg
Voltage / Frequency	230 V ~ 50/60 Hz
UL Voltage / Frequency	230 V ~ 60 Hz
Current L35L35	2.7 A @ 50 Hz 2.7 A @ 60 Hz
Starting current	16 A
Max. current	4.6 A
Nominal power L35L35	571 W @ 50 Hz 611 W @ 60 Hz
Max. power	667 W @ 50Hz 734 W @ 60Hz
Fuse	9 A (T)
Short-circuit current rating	5 kA
Connection	4-pole terminal block for power 5-pole terminal block for signals 3-pole terminal block for RS 485
