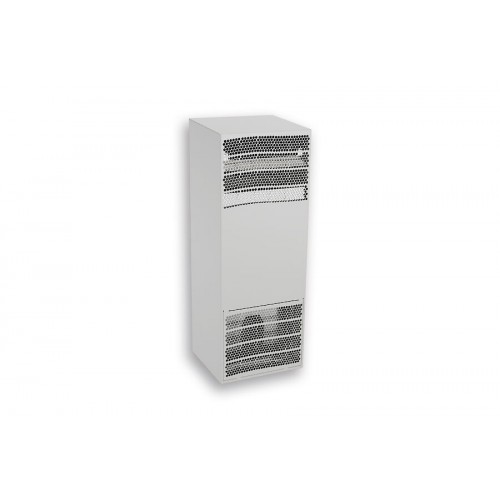

SoliTherm ComPact Outdoor unit OC5708-230V RAL7035. OC57XX series have by default integrated condensate evaporation and are UL listed.

Product Feature

Order Number	570801201
Brand Name	Compact Outdoor
Colour	RAL 7035
Housing Material	Mild steel, powder coated
IP protection class to EN 60 529	IP 56 / Type 12, 3, 3R, 4
Included	With enclosure heater and aluminium filter
Approvals	CE, cURus, cULus
UL File Number	cURus (SA32278), cULus (E498756)

Technical Data

Cooling capacity L35L35 (EN14511-3)	750 W @ 50 Hz 830 W @ 60 Hz
Cooling capacity L35L50 (EN14511-3)	650 W @ 50 Hz 695 W @ 60 Hz
Enclosure heater	400 W
Compressor type	Rotary piston compressor
Refrigerant / GWP	R513A / 630
Refrigerant charge	267 g / 9.42 oz
High / low Pressure	32 / 6 bar 457 / 88 psig
Air flow volume (system / unimpeded)	Ambient air circuit: 315 / 850 m³/h Cabinet air circuit: 165 / 250 m³/h
Operating Temperature Range	-40°C - 55°C
Mounting	Wall mounted
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	830 x 304 x 270 mm
Weight	30 kg
Cut out dimensions	265 x 180 265 x 160 mm
Voltage / Frequency	230 V ~ 50/60 Hz
UL Voltage / Frequency	230 V ~ 60 Hz
Current L35L35	2.3 A @ 50 Hz 2.1 A @ 60 Hz
Starting current	10 A
Max. current	3.7 A
Nominal power L35L35	470 W @ 50 Hz 476 W @ 60 Hz
Max. power	554 W @ 50 Hz 625 W @ 60 Hz
Fuse	5 A (T)
Short-circuit current rating	5 kA
Connection	4-pole terminal block for power 5-pole terminal block for signals 3-pole terminal block for RS 485
