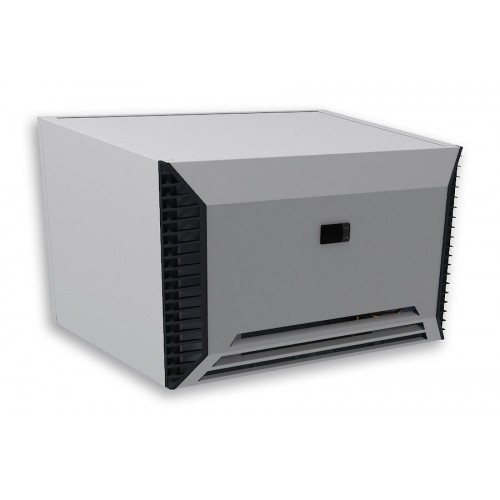

Slimline Pro Top roof mounted cooling unit KG9520. Built-in electrical condensate evaporator.
Product Feature
| Order Number | 952000001 |
| Brand Name | SLIMLINE PRO TOP |
| Colour | RAL 7035 |
| Housing Material | Mild steel, powder coated |
| IP protection class to EN 60 529 | IP 54 |
| Approvals | CE, cURus |
Technical Data
| Cooling capacity L35L35 (EN14511-3) | 2100 W |
| Cooling capacity L35L50 (EN14511-3) | 1600 W |
| Compressor type | Rotary piston |
| Refrigerant / GWP | R134a / 1430 |
| Refrigerant charge | 320 g / 11.28 oz. |
| High / low Pressure | 32 / 6 bar 464 / 87 psig |
| Air flow volume (system / unimpeded) | Ambient air circuit: 1200 m³/h Enclosure air circuit: 602 m³/h |
| Operating Temperature Range | 5°C - 55°C |
| Mounting | Roof mounted |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 435 x 595 x 475 mm |
| Weight | 40 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| Current L35L35 | 4.0 A |
| Starting current | 22 A |
| Max. current | 5.4 A |
| Nominal power L35L35 | 906 W |
| Fuse | 15 A (T) |
| Short-circuit current rating | 5 kA |
| Connection | 4 pole connector for power 5 pole connector for signals 3 pole connector for RS 485 MODBUS |
Downloads
Instruction Manual
PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration
Roof mounted enclosure cooling – KG 9520
- Brands Seifert
- Product Code: 952000001
- Availability: 6 Weeks +
-
