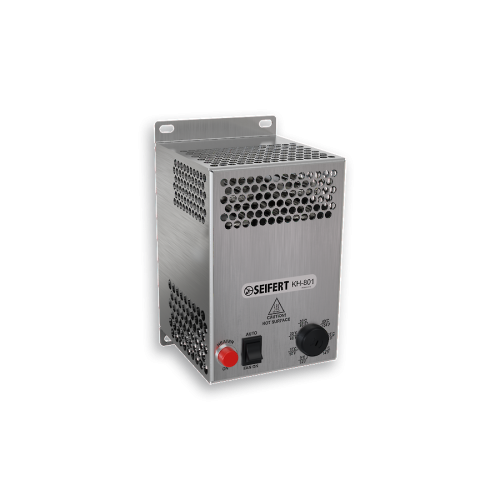

KH 801 1300W 120V heater. Small and compact design, heat up dynamically and are very quiet in operation.

Product Feature

Order Number	8011K4A33001
Brand Name	SOLIFLEX
Colour	silver
Housing Material	Aluminum
IP protection class to EN 60 529	IP 20
Included	Adjustable thermostat status indicator light Fan switch Auto / On
Optional	35mm DIN Rail clip (EN50022) Part-no. SP-KH801-AK-1
Approvals	CE, cURus
UL File Number	E358386

Technical Data

Heating power at 10°C	1300 W
Operating Temperature Range	-40 to 70 °C
Mounting	Screws or DIN rail bracket
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	190 x 126 x 155 mm
Weight	1.5 kg
Voltage / Frequency	115 V ~ 60 Hz
Rated current	10.8 A
Fan air flow, approx.	83 m³/h
Noise level	51 dB(A)
Fuse	16 A (T)
Connection	3 pole push fit connector
