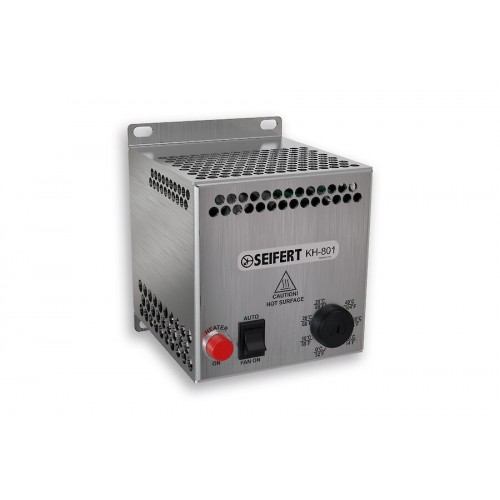

KH 801 200W 230V heater. Small and compact design, heat up dynamically and are very quiet in operation.

Product Feature

Order Number	801200A44001
Brand Name	SOLIFLEX
Colour	silver
Housing Material	Aluminum
IP protection class to EN 60 529	IP 20
Included	Adjustable thermostat status indicator light Fan switch Auto / On
Optional	35mm DIN Rail clip (EN50022) Part-no. SP-KH801-AK-1
Approvals	CE, cURus
UL File Number	E358386

Technical Data

Heating power at 10°C	200 W
Operating Temperature Range	-20°C - 40°C
Mounting	DIN rail
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	137 x 111 x 116 mm
Weight	0.8 kg
Voltage / Frequency	230 V ~ 50/60 Hz
Rated current	1.0 A
Fan air flow, approx.	27 m³/h
Fuse	2 A (T)
