*Clearance price for remaining stock

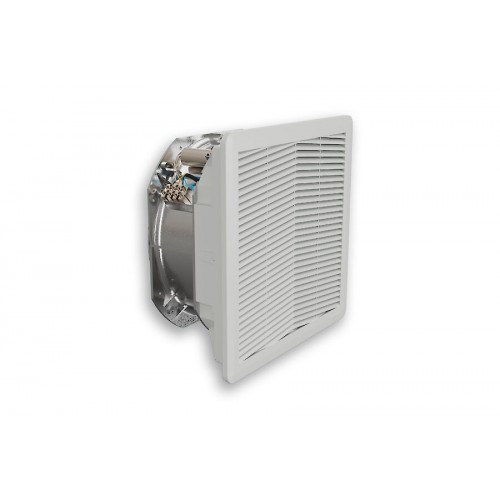

Filter fan 820m3/h, 230V, RAL7035. All filter fan cutout
dimensions comply with the market standards.
Product Feature
| Order Number | 4883A4000 |
| Brand Name | SOLIFLEX |
| Colour | RAL 7035 |
| Housing Material | ABS Plastic |
| IP protection class to EN 60 529 | IP 54, Type 12 |
| Approvals | CE, cURus, cULus |
| UL File Number | E498756 |
Technical Data
| Air flow unimpeded IP 54 | 820 m³/h |
| Operating Temperature Range | -10°C - +55°C |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 325 x 325 x 158.5 mm |
| Cut out dimensions | 291 x 291 (+1.5) mm |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| Rated current | 0.55 / 0.74 A |
| Power consumption | 125 / 166 W |
| Wall thickness | 1.5 - 2.5 mm |
| Filter class (ISO 16890) | G3 according to EN 779 |
| Installation | Elastic clips, optional screw mounting |
| Noise level | 66 dB(A) @ 50 Hz 69.2 dB(A) @ 60 Hz |
Downloads
Datasheet
PDF
Instruction Manual PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration
