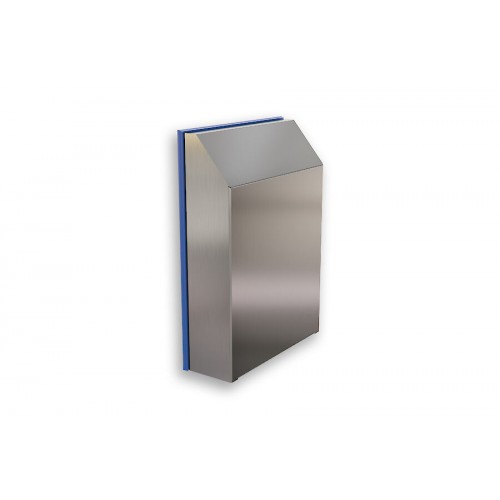

Hose-proof protection hood FC 4000 100. All filter fan cutout dimensions comply with the market standards.

Product Feature

Order Number	4000100020
Brand Name	SOLIFLEX
Housing Material	Stainless steel AISI 304 (V2A)
IP protection class to EN 60 529	IP 56 / Type 1,2,3,3X,3R,3RX,3S,3SX, 4,4X,5,12,12K,13 when installed according to instruction manual
Note	Suitable for 150 x 150 mm filter fan / exhaust filter With food safe gasket
Approvals	CE, cULus, cURus
UL File Number	E498756

Technical Data

Mounting	Stainless steel support to apply between base and clips
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	245.5 x 176 x 55 mm
Weight	0.89 kg
Installation	Mounting screws torque: 4.5 Nm / 40 Lb-In
