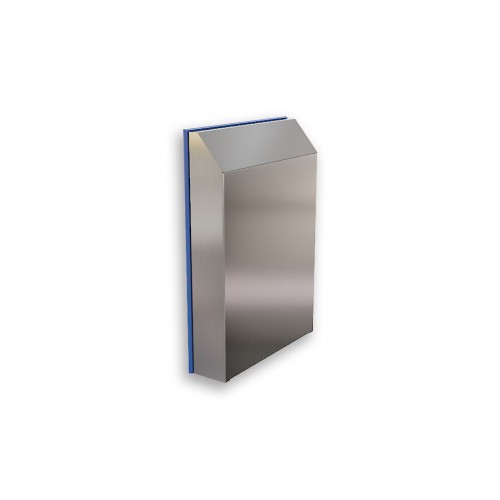

Hose-proof protection hood FC 4000 200. All filter fan
cutout dimensions comply with the market standards.
Product Feature
| Order Number | 4000200020 |
| Brand Name | SOLIFLEX |
| Housing Material | Stainless steel AISI 304 (V2A) |
| IP protection class to EN 60 529 | IP 56 / Type 1,2,3,3X,3R,3RX,3S,3SX, 4,4X,5,12,12K,13 when installed according to instruction manual |
| Note | Suitable for 204 x 204 mm filter fan / exhaust filter With food safe gasket |
| Approvals | CE, cULus, cURus |
| UL File Number | E498756 |
Technical Data
| Mounting | Stainless steel support to apply between base and clips |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 330 x 233 x 55 mm |
| Weight | 1.39 Kg |
| Installation | Mounting screws torque: 4.5 Nm / 40 Lb-In |
Downloads
Datasheet
PDF
Instruction Manual PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration
Hose-proof protection hood FC 4000 200
- Brands Seifert
- Product Code: 4000200020
- Availability: 1-2 Weeks
-
£108.00
