*Clearance price for remaining stock

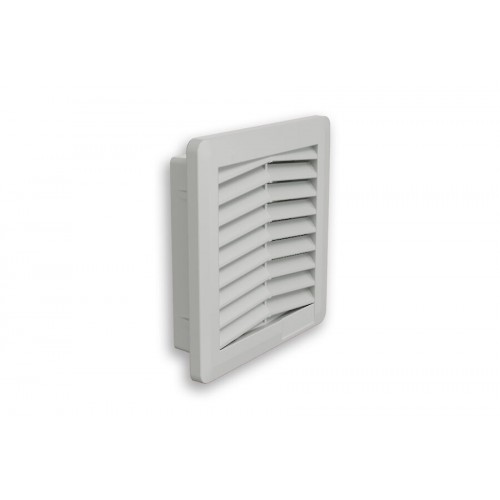

Exhaust filter FF 4000 000 RAL7035. All filter fan cutout
dimensions comply with the market standards.
Product Feature
| Order Number | 400000000 |
| Colour | RAL 7035 |
| Housing Material | ABS Plastic |
| IP protection class to EN 60 529 | IP 54 |
| Optional | Different housing colours available on request |
| Approvals | CE, cULus, CSA |
Technical Data
| Operating Temperature Range | -10°C - 55°C |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 106.5 x 106.5 x 23.2 mm |
| Weight | 0.07 kg |
| Cut out dimensions | 92.5 x 92.5 mm (+1.5) |
| Degree of seperation IP 54 | 85% - DIN 24185 |
| Wall thickness | 1 - 2 mm |
| Filter class (ISO 16890) | G3 according to EN 779 |
| Installation | Elastic clips or by 4 self-threading screws |
Downloads
Datasheet
PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration
Instructions PDF
