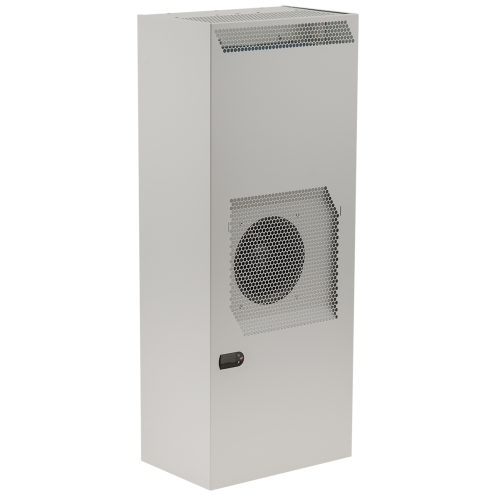

• Compact line KG4320 cabinet air conditioner

Compact line KG4320 indoor cabinet air conditioner. 2000W cooling performance. Great value and performance.

Product Feature


Brand Name
SoliTherm ComPact
Order Number
43200001
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
External circuit: IP 24
Internal circuit: IP 54
Approvals
CE, cURus, RoHS
Optional
Stainless steel cover, part no. 4320002
Taric Code
84158200
Accessories
Filter Media
Filter Holder

Technical Data

Cooling capacity L35L35
2000 W @ 50 Hz
2000 W @ 60 Hz
Cooling capacity L35L50
1600 W @ 50 Hz
1650 W @ 60 Hz
Compressor
Rotary piston compressor
Refrigerant / GWP
R134a / 1430
Refrigerant charge
700 g / 25 oz
High / low pressure
29.5 / 6 bar
425 / 88 psig
Temperature range
+10°C - +55°C
Air volume flow (system / unimpeded)
Ambient air circuit 650 / 1200 m³/h
Cabinet air circuit 470 / 850 m³/h
Mounting
External
Dimension HxWxD
980 x 395 x 260 mm
Weight
44.2 kg
Cut out dimensions
920 x 335 mm
Voltage / Frequency
230 V ~ 50/60 Hz (120v/400v optional)
Current L35L35
5.5 A @ 50 Hz
6.5 A @ 60 Hz
Starting current
22.3 A
Max. current
9.4 A
Nominal power L35L35
1.17 kW @ 50 Hz
1.41 kW @ 60 Hz
Max. power
1.65 kW @ 50 Hz
2.1 kW @ 60 Hz
Fuse
10 A (T)
Connection
Connection terminal block


Downloads

Datasheet                        230v    120v    400v

Instruction Manual           PDF

CAD files                        STEP File

Mounting Template      DXF       Internal

Certifications                    PDF EC Declaration

Video                               Installation

Instructions                   Compact Line Filter Kits

                                        Compact Line Controller

                                        R134a safety

Brochure                        Cabinet Cooling


Write a review

Please login or register to review

Compact line KG4320 cabinet air conditioner

  • Brands Seifert
  • Product Code: 43200001
  • Availability: 4-5 Weeks
  • £0.00
