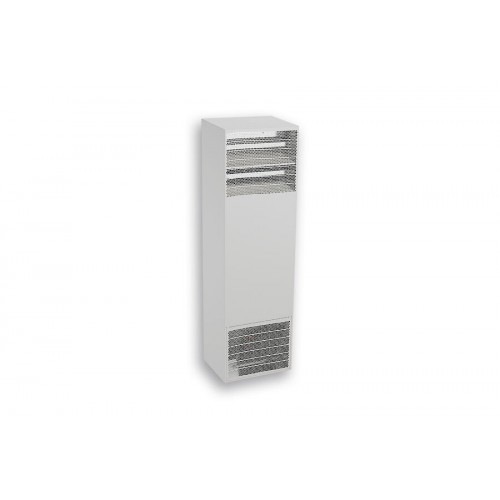

SoliTherm ComPact Outdoor unit OC5731-230V RAL7035. OC57XX series have by default integrated condensate evaporation and are UL listed.

Product Feature

Order Number	573101201
Brand Name	Compact Outdoor
Colour	RAL 7035
Housing Material	Mild steel, powder coated
IP protection class to EN 60 529	IP 56 / Type 12, 3, 3R, 4
Included	With enclosure heater and aluminium filter
Approvals	CE, cURus, cULus
UL File Number	cURus (SA32278), cULus (E498756)

Technical Data

Cooling capacity L35L35 (EN14511-3)	3000 W @ 50 Hz 3000 W @ 60 Hz
Cooling capacity L35L50 (EN14511-3)	2380 W @ 50 Hz 2510 W @ 60 Hz
Enclosure heater	1500 W
Compressor type	Rotary piston compressor
Refrigerant / GWP	R513A / 630
Refrigerant charge	1075 g / 37.9 oz.
High / low Pressure	2.9 / 0.6 MPa 425 / 88 psig
Air flow volume (system / unimpeded)	Ambient air circuit: 765 / 1200 m³/h Cabinet air circuit: 950 / 1200 m³/h
Operating Temperature Range	-40°C - 55°C
Mounting	Wall mounted
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	1,550 x 457 x 355 mm
Weight	75.3 kg
Voltage / Frequency	230 V ~ 50/60 Hz
Current L35L35	6.2 A @ 50 Hz 8.1 A @ 60 Hz
Starting current	30 A
Max. current	9.9 A
Nominal power L35L35	1410 W @ 50 Hz 1820 W @ 60 Hz
Max. power	1710 W @ 50 Hz 2180 W @ 60 Hz
Fuse	16 A (T)
Short-circuit current rating	5 kA
Connection	4 pole terminal block for power 5 pole terminal block for signals 3 pole terminal block for RS 485
