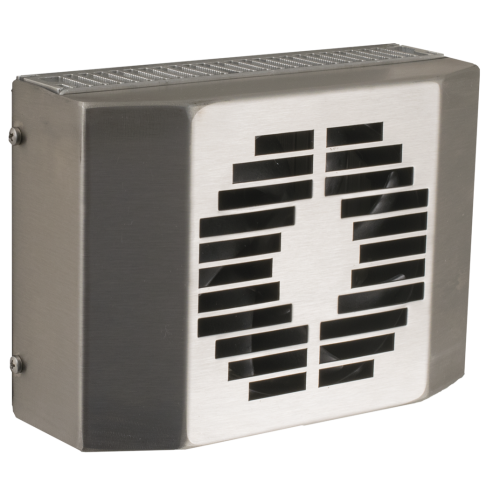

TG3030 30W 12v IP66, Type 4X Stainless steel Peltier Cooler. UL approved. External mount option available.

Product Feature

Order Number	3030303
Housing Material	Stainless steel AISI 304 (V2A)
Ingress Protection	IP 66 / UL Type 12, 4, 4X
Note	The torque for the mounting nuts should be 4.5 Nm.
Approvals	CE, cURus

Technical Data

Cooling capacity L35L35	30 W
Operating Temperature Range	-20°C - 70°C
UL temperature range	-20°C - 65°C
Air flow volume (system / unimpeded)	Ambient air circuit: 39 / 75 m³/h Cabinet air circuit: 20 / 62 m³/h
Mounting	Recessed
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	110 x 154 x 125 (61+64) mm
Weight	1.8 kg
Cut out dimensions	122 x 90 mm
Voltage / Frequency	12 V DC
Current L35L35	2.8 A
Starting current	4.3 A
Max. current	2.9 A
Nominal power L35L35	34 W
Max. power	35 W
Fuse	5 A (T)
Connection	Connection terminal block
