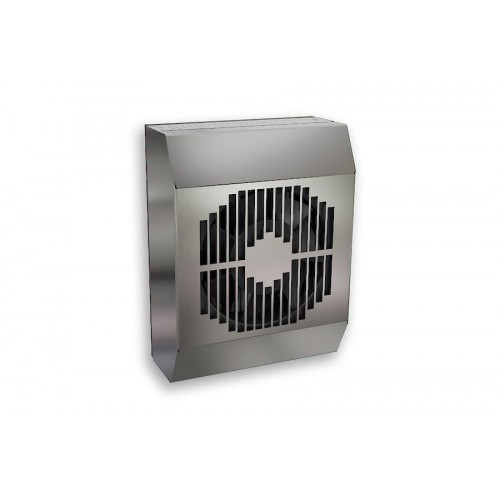

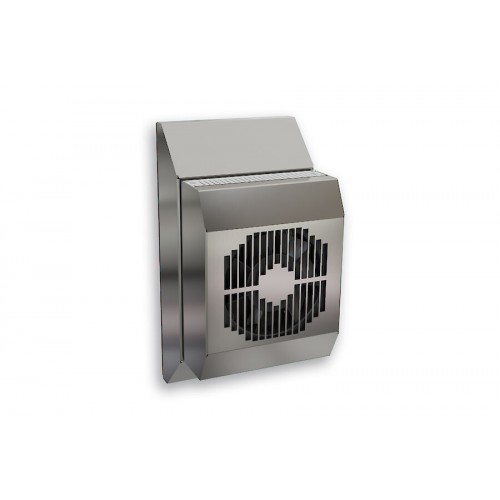

TG3050 50W 24v IP66, Type 4X Stainless steel Peltier Cooler. UL approved. External mount option available.


Product Feature

Order Number3050303
Housing MaterialStainless steel AISI 304 (V2A)
Ingress ProtectionIP 66 / UL Type 12, 4, 4X
NoteThe torque for the mounting nuts should be 4.5 Nm.
ApprovalsCE, cURus


Technical Data

Cooling capacity L35L3550 W
Operating Temperature Range-20°C - 70°C
UL temperature range-20°C - 65°C
Air flow volume (system / unimpeded)Ambient air circuit: 64 / 170 m³/h
Cabinet air circuit: 23 / 72 m³/h
MountingRecessed
Dimensions A x B x C (D+E)

A = Height | B = Width | C = Depth

206 x 154 x 139 (66+73) mm
Weight3.3 kg
Cut out dimensions170 x 120 mm
Voltage / Frequency24 V DC
Current L35L352.4 A
Starting current3.7 A
Max. current2.8 A
Nominal power L35L3558 W
Max. power66 W
Fuse4 A (T)
ConnectionConnection terminal block

Downloads

Datasheet                        Recessed    External

Instruction Manual           PDF

CAD files                        Recessed    External    (Right click, save as)

Mounting Template      DXF       Recessed    External    (Right click, save as)

Certification                     EC Declaration

Video                               Peltier Cooling Units

Write a review

Please login or register to review

Thermoelectric cooling unit TG 3050 24V IP66 Stainless steel Peltier Cooler

  • Brands Seifert
  • Product Code: 3050303
  • Availability: 6 Weeks +
