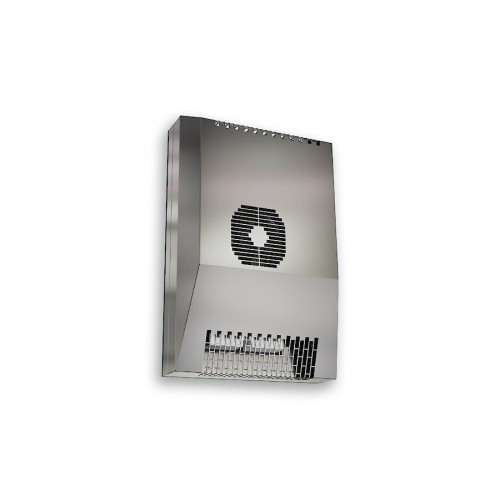

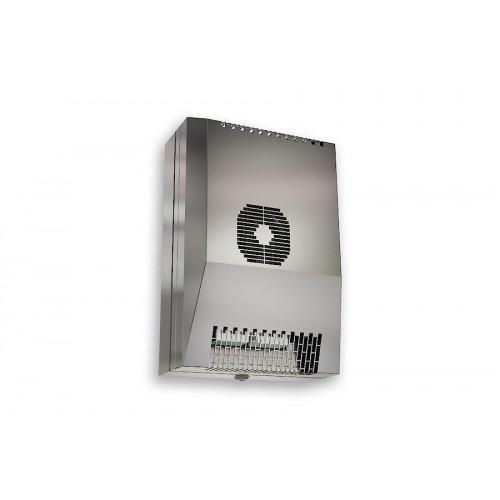

TG6155 150W IP66, Type 4X Stainless steel Peltier Cooler. UL approved. External mount option available.

Product Feature

Order Number	6155323
Brand Name	SOLITHERM PELTIER
Housing Material	Stainless steel AISI 304 (V2A)
IP protection class to EN 60 529	IP 66 / UL Type 12, 4, 4X
Note	The torque for the mounting nuts should be 4.5 Nm.
Approvals	CE, cURus

Technical Data

Cooling capacity L35L35 (EN14511-3)	150 W
Air flow volume (system / unimpeded)	Ambient air circuit: 120 / 260 m³/h Cabinet air circuit: 60 / 170 m³/h
Operating Temperature Range	-20°C - 70°C
UL temperature range	-20°C - 65°C
Mounting	Recessed
Dimensions A x B x C (D+E) A = Height \| B = Width \| C = Depth	500 x 333 x 181 (113+68) mm
Weight	18 kg
Cut out dimensions	302 x 472 mm
Voltage / Frequency	230 V ~ 50/60 Hz
Current L35L35	0.7 A
Starting current	1.1 A
Max. current	0.8 A
Nominal power L35L35	170 W
Max. power	180 W
Fuse	2 A (T)
Connection	4 pole power connector 5 pole connector for signals
