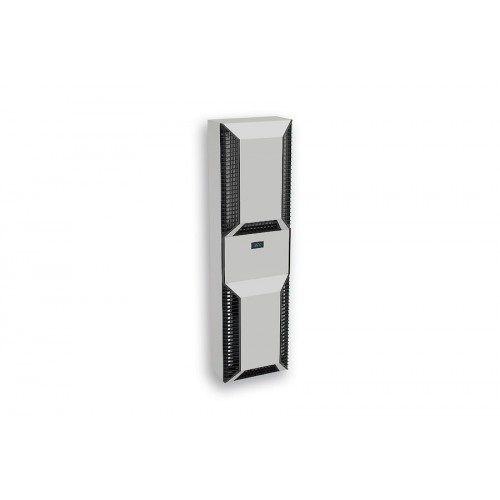

Slimline Pro KG8562 Outdoor Cabinet Air Conditioner. 6200W cooling capacity.
Product Feature
Order Number | 856220001 |
Colour | RAL 7035 |
Housing Material | Mild steel, powder coated |
Ingress Protection | IP 55 / Type 12 |
Approvals | CE, cURus, cULus |
Technical Data
Cooling capacity L35L35 | 6.0 kW @ 50 Hz 6.2 kW @ 60 Hz |
Cooling capacity L35L50 | 5.0 kW @ 50 Hz 5.5 k W @ 60 Hz |
EER L35L35 | 2.0 |
Compressor type | Scroll |
Refrigerant / GWP | R134a / 1430 |
Refrigerant charge | 1200 g / 42 oz. |
High / low Pressure | 32 / 6 bar 460 / 88 psi |
Operating Temperature Range | 10°C - 55°C |
UL temperature range | 10°C - 55°C |
Air flow volume (system / unimpeded) | Ambient air circuit: 1000 / 1400 m³/h Cabinet air circuit: 1050 / 1400 m³/h |
Mounting | Wall mounted / recessed |
Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 1,630 x 455 x 270 (75+195) mm |
Weight | 86.5 kg |
Voltage / Frequency | 380-415 V 50 Hz 3~ 400-460 V 60 Hz 3~ |
UL Voltage / Frequency | 460 V / 60Hz 3~ |
Current L35L35 | 6.2 A @ 50 Hz 6.3 A @ 60 Hz |
Starting current | 52 A |
Max. current | 10.5 A |
Nominal power L35L35 | 3.1 kW @ 50 Hz 3.9 kW @ 60 Hz |
Max. power | 7.0 kW |
Fuse | 15 A (T) |
Max circuit ampacity | 15 A |
Short-circuit current rating | 5 kA |
Rated current compressor | 6.4 A |
Full load current fans | 1.3 A |
Connection | 4 pole terminal for power 5 pole terminal for signals |
Downloads
Datasheet 400v
Instruction Manual PDF
CAD files STEP File (Right click, save as)
Certifications PDF EC Declaration
Slimline Pro KG8562 Outdoor Cabinet Air Conditioner
- Brands Seifert
- Product Code: 856220001
- Availability: 6 Weeks +
-
