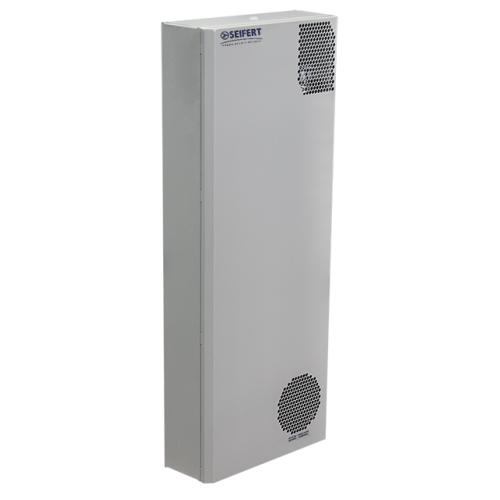

Slimline KG4271 820W cabinet air conditioner. Extruded aluminium / copper wrapped filterless condensor. Only 145mm depth
Product Feature
Order Number | 42710001 |
Colour | RAL 7035 |
Housing Material | Mild steel, powder coated |
Ingress Protection | IP 54 / TYPE 12 |
Approvals | CE, cURus, cULus |
Technical Data
Cooling capacity L35L35 | 820 W @ 50 Hz 885 W @ 60 Hz |
Cooling capacity L35L50 | 480 W @ 50 Hz 530 W @ 60 Hz |
Compressor type | Rotary piston compressor |
Refrigerant / GWP | R134a / 1430 |
Refrigerant charge | 280 g / 9.9 oz |
High / low Pressure | 37 / 9.6 bar 406 / 148 psig |
Operating Temperature Range | 10°C - 55°C |
Air flow volume (system / unimpeded) | Ambient air circuit: 320 / 650 m³/h Cabinet air circuit: 290 / 550 m³/h |
Mounting | Wall mounted / Recessed |
Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 980 x 395 x 145 (25+120) mm |
Weight | 33 kg |
Cut out dimensions | 961 x 376 mm |
Voltage / Frequency | 230 V ~ 50/60 Hz |
Current L35L35 | 3.3 A @ 50 Hz 3.7 A @ 60 Hz |
Starting current | 15.5 A |
Max. current | 4.3 A |
Nominal power L35L35 | 660 W @ 50 Hz 760 W @ 60 Hz |
Max. power | 850 W |
Fuse | 10 A (T) |
Max circuit ampacity | 15 A |
Short-circuit current rating | 5 kA |
Rated current compressor | 15.5 A |
Full load current fans | 4.3 A |
Connection | Connection terminal block |
Downloads
Instruction Manual PDF
CAD files STEP File (Right click, save as)
Mounting Template DXF Internal (Right click, save as)
DXF External (Right click, save as)
Certifications PDF EC Declaration
Video Servicing - wet cleaning- part1 / Servicing - wet cleaning- part2
Instructions Cleaning
Slimline KG4271 filterless cabinet air conditioner
- Brands Seifert
- Product Code: 42710001
- Availability: 6 Weeks +
-
£0.00
