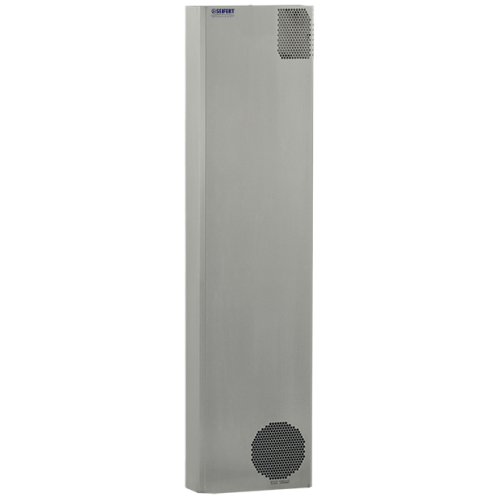

• Slimline KG4274 filterless cabinet air conditioner

Slimline KG4274 1500W cabinet air conditioner. Extruded aluminium / copper wrapped filterless condensor. Only 145mm depth


Product Feature

Brand Name
SoliTherm SlimLine
Order Number
42740001
Color
RAL 7035
Housing Material
Mild steel, powder coated
Ingress protection
External circuit: IP 24
Internal circuit: IP 54
Approvals
CE, cURus, RoHS
Optional
Stainless steel housing, part no. 4274002
Taric Code
84158200
Accessories

NEMA 4X cover

Technical Data

Cooling capacity L35L35
1500 W @ 50 Hz
1500 W @ 60 Hz
Cooling capacity L35L50
1200 W @ 50 Hz
1200 W @ 60 Hz
Compressor
Rotary piston compressor
Refrigerant / GWP
R134a / 1430
Refrigerant charge
530 g / 19 oz
High / low pressure
37 / 9.6 bar
536 / 140 psig
Temperature range
+10°C - +55°C
Air volume flow (system / unimpeded)
Ambient air circuit: 430 / 1200 m³/h
Cabinet air circuit: 200 / 850 m³/h
Mounting
Internal / External
Dimension HxWxD
1,550 x 395 x 145 mm
Weight
50 kg
Cut out dimensions
1,531 x 376 mm
Voltage / Frequency
230 V ~ 50/60 Hz (120v/400v optional)
Current L35L35
4.3 A @ 50 Hz
5.5 A @ 60 Hz
Starting current
22 A
Max. current
7.0 A
Nominal power L35L35
1.00 kW @ 50 Hz
1.23 kW @ 60 Hz
Max. power
1.58 kW
Fuse
10 A (T)
Connection
Connection terminal block


Downloads

Datasheet                        230v    120v    400v

Instruction Manual           PDF

CAD files                        STEP File

Mounting Template      DXF       Internal

                                    DXF       External

Certifications                    PDF EC Declaration

Video                               Servicing - wet cleaning- part1Servicing - wet cleaning- part2

                                        Servicing - dry cleaning

Instructions                   Cleaning

Brochure                        Cabinet Cooling
