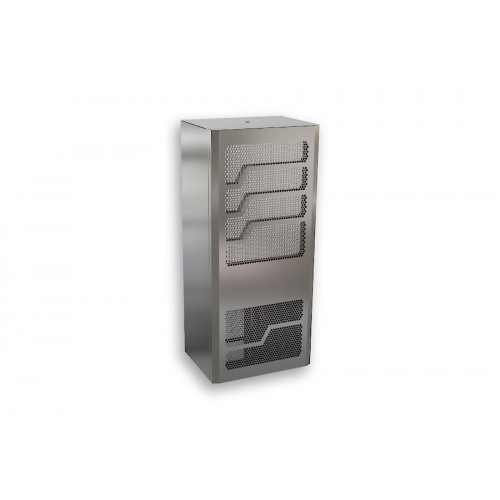

Solitherm Protec OC 8720 - Enclosure cooling for corrosive environments -
Product Feature
| Order Number | 87200584 |
| Brand Name | SOLITHERM PROTEC |
| Housing Material | Stainless steel AISI 316 (V4A) |
| IP protection class to EN 60 529 | IP 56 / Type 12, 3, 3R, 4, 4X |
| Approvals | CE, UL(ACVS), cULus |
| UL File Number | SA32278 |
Technical Data
| Cooling capacity L35L35 (EN14511-3) | 2000 W @ 50 Hz 2100 W @ 60 Hz |
| Cooling capacity L35L50 (EN14511-3) | 1850 W @ 50 Hz 1900 W @ 60 Hz |
| EER L35L35 | 2.0 / 1.8 |
| Enclosure heater | 1,000 W |
| Compressor type | Reciprocating compressor |
| Refrigerant / GWP | R 513A / 630 |
| Refrigerant charge | 352 g / 12.4 oz |
| High / low Pressure | 30 / 6 bar 435 / 88 psi |
| Air flow volume (system / unimpeded) | Ambient air circuit: 740 / 1150 m³/h Enclosure air circuit: 595 / 875 m³/h |
| Operating Temperature Range | -40˚C - 60˚C |
| UL temperature range | -40˚C - 60˚C |
| Mounting | Wall mounted |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 890 x 395 x 305 mm |
| Weight | 45.4 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| UL Voltage / Frequency | 230 V ~ 60 Hz |
| Current L35L35 | 4.4 A @ 50 Hz 2.8 A @ 60 Hz |
| Starting current | 16 A |
| Max. current | 6.8 A |
| Nominal power L35L35 | 1.00 kW @ 50 Hz 1.23 kW @ 60 Hz |
| Max. power | 1.51 kW |
| Fuse | 15 A (T) |
| Max circuit ampacity | 15 A |
| Short-circuit current rating | 5 kA |
| Rated current compressor | 4 A |
| Full load current fans | 0.73 A |
| Connection | 5 pole terminal block for signals 4 pole terminal block for power 3 pole terminal block for RS 485 MODBUS |
