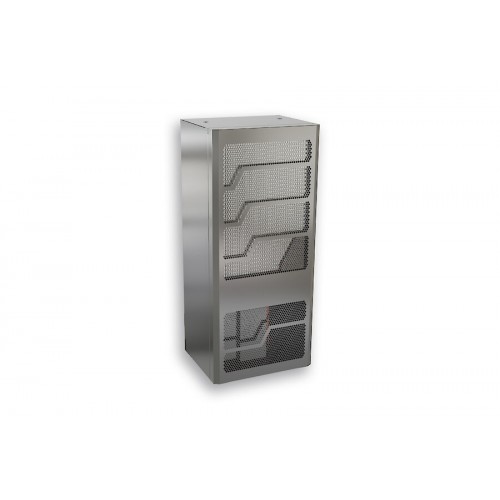

Solitherm Protec OC 8740 - Enclosure cooling for corrosive environments -
Product Feature
| Order Number | 87400584 |
| Brand Name | SOLITHERM PROTEC |
| Housing Material | Stainless steel AISI 316 (V4A) |
| IP protection class to EN 60 529 | IP 56 / Type 12, 3, 3R, 4, 4X |
| Approvals | CE, cULus |
| UL File Number | E498756 |
Technical Data
| Cooling capacity L35L35 (EN14511-3) | 3900 W @ 50 Hz 4300 W @ 60 Hz |
| Cooling capacity L35L50 (EN14511-3) | 3300 W @ 50 Hz 3400 W @ 60 Hz |
| EER L35L35 | 2.1 / 1.8 |
| Enclosure heater | 2,000 W |
| Compressor type | Reciprocating compressor |
| Refrigerant / GWP | R 513A / 630 |
| Refrigerant charge | 572 g / 20.2 oz |
| High / low Pressure | 32 / 6 bar 460 / 88 psig |
| Air flow volume (system / unimpeded) | Ambient air circuit: 1085 / 1480 m³/h Enclosure air circuit: 870 / 1480 m³/h |
| Operating Temperature Range | -40˚C - +60˚C |
| UL temperature range | -40˚C - +60˚C |
| Mounting | Wall mounted |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 1,040 x 455 x 370 mm |
| Weight | 65 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| UL Voltage / Frequency | 230 V ~ 60 Hz |
| Current L35L35 | 8.3 A @ 50 Hz 10.8 A @ 60 Hz |
| Starting current | 50 A |
| Max. current | 14.1 A |
| Nominal power L35L35 | 1.85 kW @ 50 Hz 2.40 kW @ 60 Hz |
| Max. power | 3.25 kW |
| Fuse | 20 A (T) |
| Max circuit ampacity | 15 A |
| Short-circuit current rating | 5 kA |
| Rated current compressor | 7.6 A |
| Full load current fans | 1.82 A |
| Connection | 5 pole terminal block for signals 4 pole terminal block for power 3 pole terminal block for RS 485 MODBUS |
