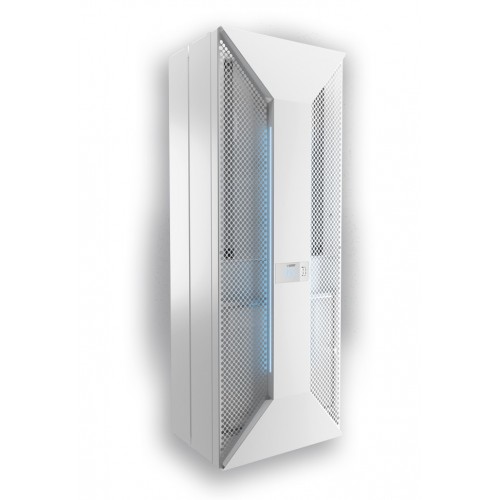

Slimline NEO 9225 - Wall Mount, Mild Steel, Compressor Cooling -
Product Feature
| Order Number | 922500001 |
| Brand Name | Slimline NEO |
| Housing Material | RAL 7035 |
| IP protection class to EN 60 529 | IP54, IP55 |
| Approvals | CE, UKCA, cURus |
Technical Data
| Cooling capacity L35L35 | 2,500 W |
| Energy Efficiency L35L35 | ≤ 3.1 |
| Compressor type | BLDC Rotary Piston |
| Refrigerant / GWP | R290 / 0.02 |
| Operating Temperature Range | 10°C to 60°C |
| Mounting | External Mount, Partially Internal Mount, Internal Mount (cover outside) |
| Dimensions (H x W x D) | 1,350 x 395 x 290 mm |
| Weight | 42 kg |
| Voltage / Frequency | 240V, 120V, 1~, 60Hz |
| Fuse rating | 20 A (T) |
| Connection | 4 pole terminal block for power 5 pole terminal block for signals 3 pole terminal block for RS 485 |
