Electronic changeover hygrostat, 24 V DC. All our enclosure accessories are 100% tested for
functionality.
Product Feature
| Order Number | 301610 |
| Brand Name | SOLIFLEX |
| Housing Material | PC plastic |
| IP protection class to EN 60 529 | IP 20 |
| Note | Hyst. 5%r.H. / Sw.Pt.tol ±10% |
| Approvals | CE, cURus |
Technical Data
| Operating Temperature Range | -25 - 70°C / 95% int. sensor -25 - 80°C / 95% ext. sensor |
| Setting range | 30 - 90 % |
| Mounting | DIN Rail 35 mm |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 60 x 39 x 53,3 mm |
| Weight | 60 g |
| Voltage / Frequency | 24 V DC / 16 A |
| Lifetime | 100,000 hrs. |
| Connection | 4-pole terminal, clamping torque 0.5 Nm max. solid wire - 2.5 mm² max., stranded wire - 1.5 mm² max. |
Downloads
Datasheet
PDF
Instruction Manual PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration

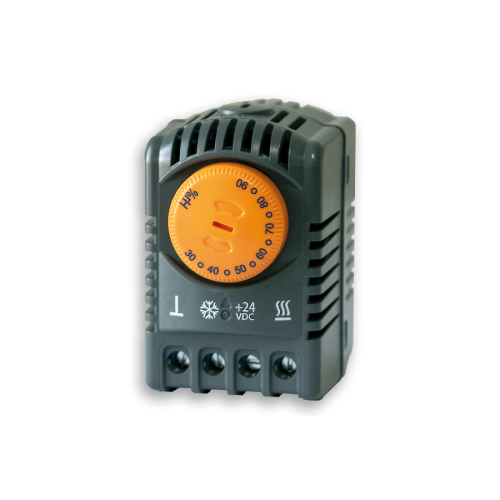

Electronic change-over hygrostat 301610
- Brands Seifert
- Product Code: 301610
- Availability: 1-2 Weeks
-
£45.00
-
- 15 or more £31.50
