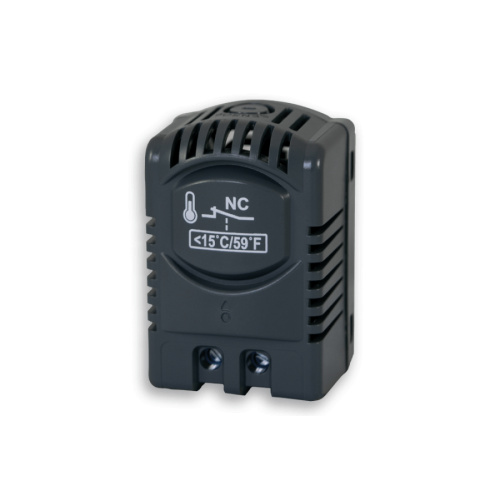

• Pre-set thermostat NC 301010

Pre-set temperature thermostat NC OFF @ 15°C (59°F) - ON @ 5°C (41°F). All our enclosure accessories are 100% tested for functionality.

Product Feature

Brand Name
SoliTherm
Order Number
301010
Colour
Grey RAL 7011
Housing Material
PC plastic
Ingress protection
IP 20
Note
Hyst.10±2K / Sw.Pt.tol ±2K
Approvals
CE, cURus, RoHS
UL File Number
E358385
Taric Code
90321089


Technical Data

Temperature range
-45°C - 120°C
Mounting
Clips for DIN rail 35 mm
Dimension HxWxD
60 x 39 x 38.9 mm
Weight
~ 50 g
Voltage / Frequency
max 250 V AC 16 A(res)/ 10 A(ind)
max 72 V DC max 30 W
Lifetime
100,000 hrs
Setting Range
OFF 15°C/59°F - ON 5°C/41°F
Connection
2-pole terminal, clamping torque 0.5Nm max.
solid wire - 2.5mm² max. stranded wire - 1.5mm² max


Downloads

Datasheet                        PDF

Instruction Manual           PDF

CAD files                      STEP File

Certifications                 PDF EC Declaration

Instructions                PDF

Write a review

Please login or register to review

Pre-set thermostat NC 301010

  • Brands Seifert
  • Product Code: 301010
  • Availability: 1-2 Weeks
  • £10.80


  • 25 or more £7.00
