Pre-set temperature thermostat NO ON @ 60°C (140°F) - OFF
@ 50°C (122°F). All our enclosure accessories are 100% tested for
functionality.
Product Feature
| Order Number | 301050 |
| Brand Name | SOLIFLEX |
| Colour | Grey RAL 7011 |
| Housing Material | PC plastic |
| IP protection class to EN 60 529 | IP 20 |
| Note | Hyst.10±2K / Sw.Pt.tol ±2K |
| Approvals | CE, cURus |
| UL File Number | E358385 |
Technical Data
| Operating Temperature Range | -45°C - 120°C / -40°C - 80°C (UL) |
| Setting range | ON 60°C/140°F - OFF 50°C/122°F |
| Mounting | DIN Rail 35 mm |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 60 x 39 x 38.9 mm |
| Weight | ~ 50 g |
| Voltage / Frequency | max. 250 V AC 16 A(res) / 10 A(ind) max. 72 V DC max. 30 W |
| Lifetime | 30k Cycles |
| Connection | 2-pole terminal, clamping torque 0.5 Nm max. solid wire - 2.5 mm² max. stranded wire - 1.5 mm² max. |
Downloads
Datasheet
PDF
Instruction Manual PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration

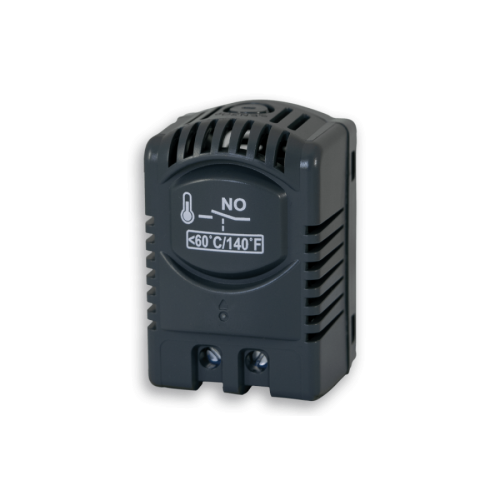

Pre-set thermostat NO 301050
- Brands Seifert
- Product Code: 301050
- Availability: 1-2 Weeks
-
£14.00
-
- 25 or more £7.20
