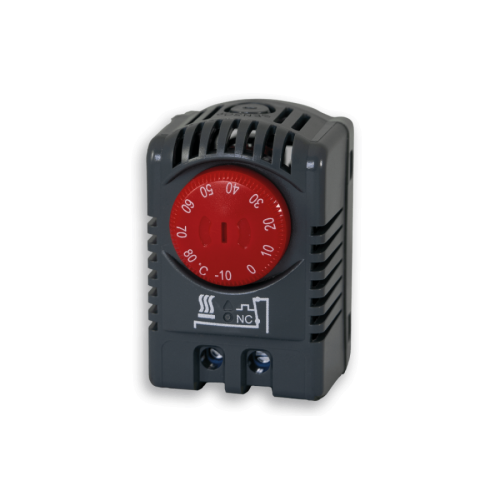

Variable temperature thermostat NC -10°C - +80°C. All our
enclosure accessories are 100% tested for functionality.
Product Feature
Brand NameSoliTherm
Order Number301110
ColourGrey RAL 7011
Housing MaterialPC plasticIngress protectionIP 20NoteHyst.10±2K / Sw.Pt.tol ±2K
ApprovalsCE, cURus, RoHS
UL File NumberE358385
Taric Code90321089
Technical Data
Temperature range-45°C - 120°C
MountingClips for DIN rail 35 mm
Dimension HxWxD60 x 39 x 42.4 mm
Weight~ 65 g
Voltage / Frequencymax 250 V AC 16 A(res)/ 10 A(ind)
max 72 V DC max 30 W
Lifetime100,000 hrs
Setting Range-10°C - 80°C
Connection2-pole terminal, clamping torque 0.5Nm max.
solid wire - 2.5mm² max. stranded wire - 1.5mm² max
