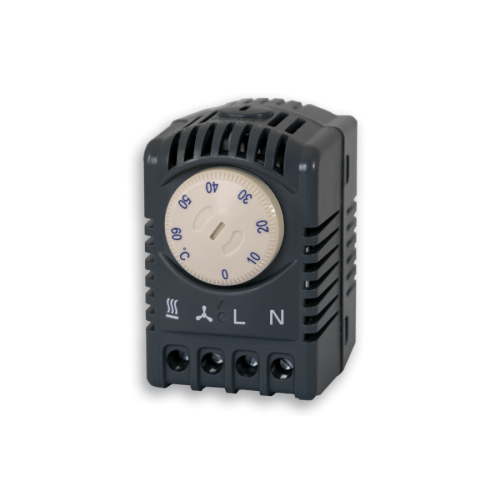

  • Thermal f.b. thermostat 301320

Changeover thermostat with thermal feedback (white knob). All our enclosure accessories are 100% tested for functionality.

Product Feature

Brand Name
SoliTherm
Order Number
301320
Colour
Grey RAL 7011
Housing Material
PC plastic
Ingress protection
IP 20
Note
Hyst. 4-7K/1K / Sw.Pt.tol ±3K
Approvals
CE, cURus, RoHS
UL File Number
E358385
Taric Code
90321089


Technical Data

Temperature range
0°C - 60°C
Mounting
Clips for DIN rail 35 mm
Dimension HxWxD
60 x 39 x 53.3 mm
Weight
70 g
Voltage / Frequency
max 250 V AC 16 A(res)/ 10 A(ind)
max 72 V DC max 30 W
Lifetime
100,000 hrs
Setting Range
0°C - 60°C
Connection
4-pole terminal, clamping torque 0.5 Nm max.
solid wire - 2.5 mm² max., stranded wire - 1.5 mm² max


Downloads

Datasheet                        PDF

Instruction Manual           PDF

CAD files                      STEP File    (Right click, save as)

Certifications                 PDF EC Declaration

Instructions                PDF

Write a review

Please login or register to review

Thermal f.b. thermostat 301320

  • Brands Seifert
  • Product Code: 301320
  • Availability: 13

  • £39.00

  • 15 or more £16.75
