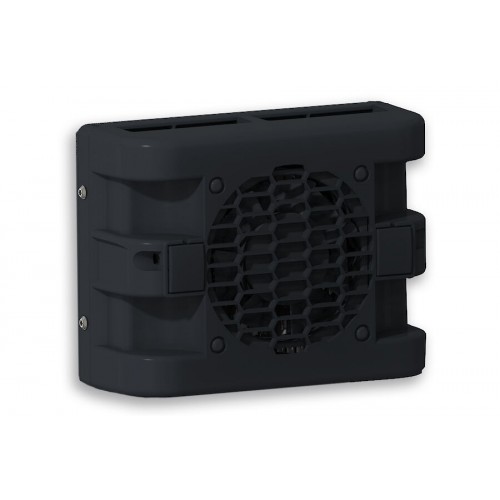

Thermoelectric dehumidifier – TG 3039. Condensate pump optional, for indoor and outdoor applications.
Product Feature
| Order Number | 3039303 |
| Brand Name | SOLIFLEX |
| Colour | Black |
| Housing Material | PC UL94V-0 |
| Note | Use a class 2 power unit (UL) |
| Approvals | CE, cURus |
Technical Data
| Condensation rate 30°C / 80%rH. | 25 ml/hr |
| Operating Temperature Range | 0°C - 65°C |
| Mounting | Recessed, DIN rail, enclosure floor Optional wall mounting with mounting frame 1019305 |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 176 x 136 x (72+61) mm |
| Weight | 1.8 kg |
| Cut out dimensions | 152 x 117.5 mm |
| Voltage / Frequency | 24 V DC |
| Rated current | 2.1 A |
| Starting current | 3.1 A |
| Max. current | 2.4 A |
| Power consumption | 50 W |
| Max. power | 58 W |
| Fuse | 4 A (T) |
| Connection | Connection terminal block |
Downloads
Datasheet
PDF
Instruction Manual PDF
CAD files
STEP File (Right click, save as)
Thermoelectric dehumidifier – TG 3039
- Brands Seifert
- Product Code: 3039303
- Availability: 1-2 Weeks
-
£0.00
