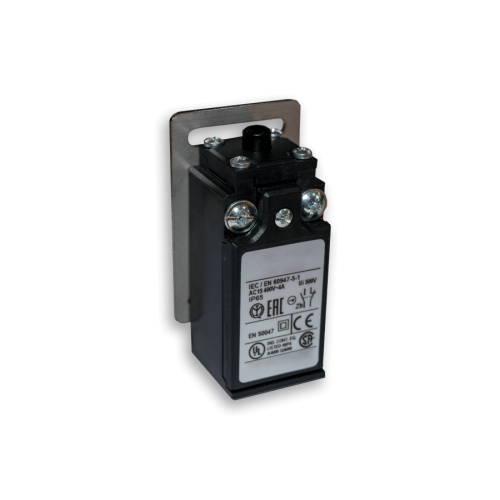

Door contact switch for screwing into the cabinet frame. Prevents condensation when the cabinet door is open.
Product Feature
| Order Number | 3100001 |
| Housing Material | ABS Plastic |
| IP protection class to EN 60 529 | IP 65 |
| Included | 2 x M4 screws, mounting bracket |
| Approvals | CE, cURus |
Technical Data
| Operating Temperature Range | -25°C - +70°C |
| Mounting | 2 x M4 screws |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 73 x 30.3 x 30 mm |
| Voltage / Frequency | 24 - 400 V AC / 50-60 Hz 24 - 250 V DC |
| Rated current | AC: 10 - 1.8 A DC: 28 - 0.27 A |
| Connection | Screws terminal for electrical connection and one cable inlet for PG 13.5 cable gland |
