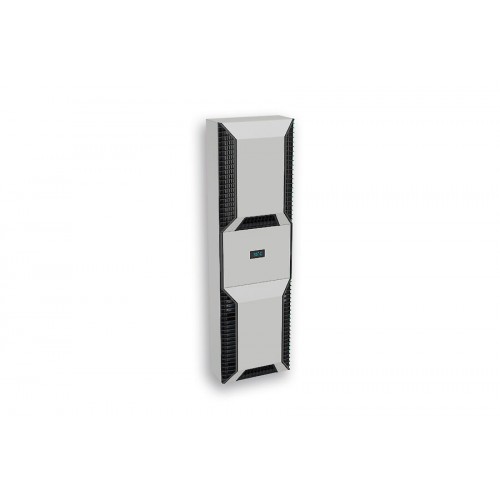

Slimline Pro KG8525 Outdoor Cabinet Air Conditioner. 2500W cooling capacity.
Product Feature
| Order Number | 852500001 |
| Colour | RAL 7035 |
| Housing Material | Mild steel, powder coated |
| Ingress Protection | IP 55 / Type 12 |
| Approvals | CE, cURus, cULus |
Technical Data
| Cooling capacity L35L35 | 2.5 kW @ 50 Hz 2.5 kW @ 60 Hz |
| Cooling capacity L35L50 | 2.1 kW @ 50 Hz 2.1 kW @ 60 Hz |
| EER L35L35 | 2.08 |
| Compressor type | Rotary piston |
| Refrigerant / GWP | R134a / 1430 |
| Refrigerant charge | 400 g / 14,1 oz |
| High / low Pressure | 30 / 6 bar 435 / 88 psi |
| Operating Temperature Range | 10°C - 60°C |
| UL temperature range | 10°C - 60°C |
| Air flow volume (system / unimpeded) | Ambient air circuit: 680 / 1200 m³/h Cabinet air circuit: 500 / 850 m³/h |
| Mounting | Wall mounted / recessed |
| Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth | 1,350 x 395 x 210 (55+155) mm |
| Weight | 47 kg |
| Voltage / Frequency | 230 V ~ 50/60 Hz |
| UL Voltage / Frequency | 230 V ~ 60 Hz |
| Current L35L35 | 5.4 A @ 50 Hz 6.6 A @ 60 Hz |
| Starting current | 22.5 A |
| Max. current | 8.5 A |
| Nominal power L35L35 | 1.20 kW @ 50 Hz 1.47 kW @ 60 Hz |
| Max. power | 1.95 kW |
| Fuse | 15 A (T) |
| Max circuit ampacity | 15 A |
| Short-circuit current rating | 5 kA |
| Rated current compressor | 5 A |
| Full load current fans | 0.7 A |
| Connection | 4 pole terminal for power 5 pole terminal for signals |
Downloads
Instruction Manual
PDF
CAD files
STEP File (Right click, save as)
Certifications PDF EC Declaration
Slimline Pro KG8525 Outdoor Cabinet Air Conditioner
- Brands Seifert
- Product Code: 852500001
- Availability: 6 Weeks +
-
£0.00
