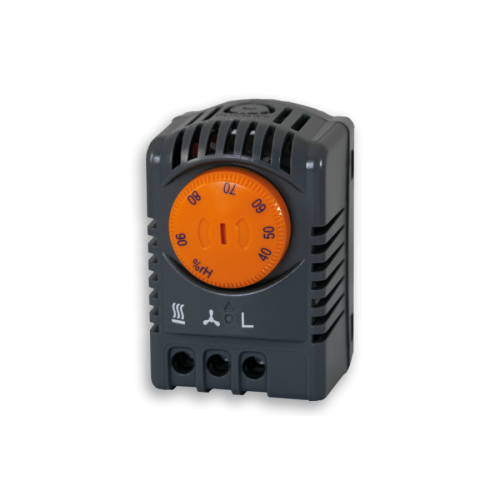

  • Mechanical hygrostat 301410

Mechanical changeover hygrostat, 40 - 90% (orange knob). Thermal Controls CC 301 series. All our enclosure accessories are 100% tested for functionality.

Product Feature

Brand Name
SoliTherm
Order Number
301410
Colour
Grey RAL 7011
Housing Material
PC plastic
Ingress protection
IP 20
Note
Hyst. 5%r.H. / Sw.Pt.tol ±4%
Approvals
CE, cURus, RoHS
UL File Number
E358385
Taric Code
90321089


Technical Data

Temperature range
0°C - 60°C / 95 %
Mounting
Clips for DIN rail 35 mm
Dimension HxWxD
60 x 39 x 42.4 mm

Voltage / Frequency
max. 230 V AC
2 A (hum) / 5 A (dehum)
Lifetime
30k cycles
Setting Range
40% - 90%r.H
Connection
3-pole terminal, clamping torque 0.5 Nm max.
solid wire - 2.5 mm² max., stranded wire - 1.5 mm² max


Downloads

Datasheet                        PDF

Instruction Manual           PDF

CAD files                      STEP File    (Right click, save as)

Certifications                 PDF EC Declaration
