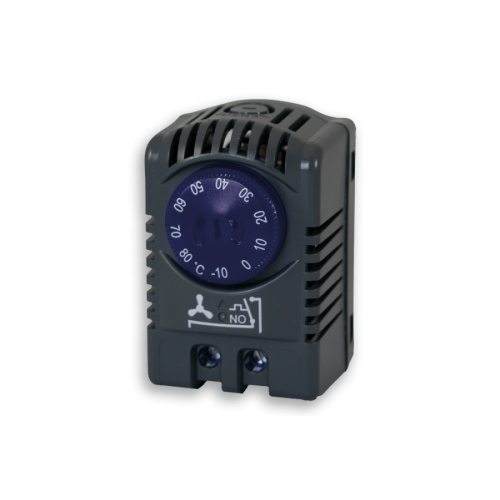

• Thermostat NC 301120

Variable temperature thermostat NO -10°C - +80°C. All our enclosure accessories are 100% tested for functionality.

Product Feature

Brand Name
SoliTherm
Order Number
301120
Colour
Grey RAL 7011
Housing Material
PC plastic
Ingress protection
IP 20
Note
Hyst.10±2K / Sw.Pt.tol ±2K
Approvals
CE, cURus, RoHS
UL File Number
E358385
Taric Code
90321089


Technical Data

Temperature range
-45°C - 120°C
Mounting
Clips for DIN rail 35 mm
Dimension HxWxD
60 x 39 x 42.4 mm
Weight
~ 65 g
Voltage / Frequency
max 250 V AC 16 A(res)/ 10 A(ind)
max 72 V DC max 30 W
Lifetime
100,000 hrs
Setting Range
-10°C - 80°C
Connection
2-pole terminal, clamping torque 0.5Nm max.
solid wire - 2.5mm² max. stranded wire - 1.5mm² max


Downloads

Datasheet                        PDF

Instruction Manual           PDF

CAD files                      STEP File

Certifications                 PDF EC Declaration

Instructions                PDF

Write a review

Please login or register to review

Thermostat NC 301120

  • Brands Seifert
  • Product Code: 301120
  • Availability: 25
  • £12.75


  • 25 or more £8.20
